- Acrovyn & Acrovyn PVC-Free

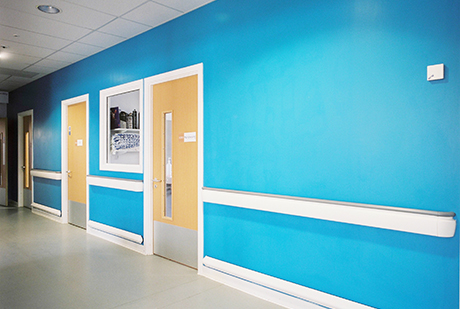

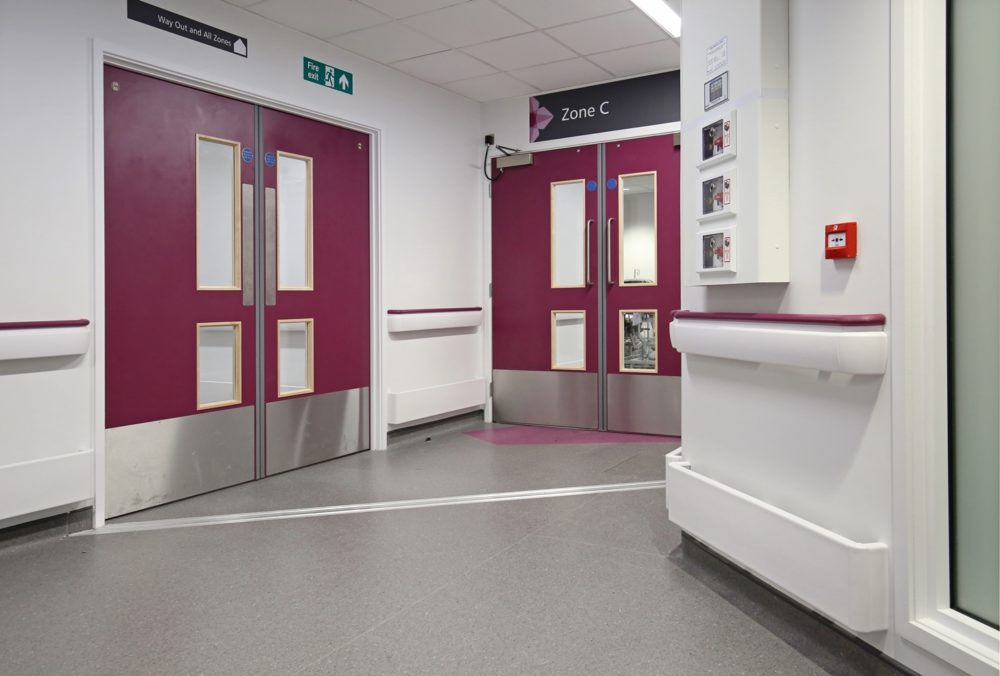

143mm high hand/crash rails offering pedestrian support and heavy duty impact protection. Two colours can be used to provide visual contrast.
- Heavy Duty
- Quick Lock
- Dual Colour
- Comfortable grip handrail available in solid colours and contemporary finishes
- Two colours can be used for visual contrast or in wayfinding schemes
- Impact resistant crash rail cover over continuous aluminium retainer and bumper cushion for effective damage protection
- Quick Lock brackets for fast installation and easy maintenance
- Infill strip closes off retainer channel for ease of cleaning
- Anti-ligature option featuring continuous, powder coated aluminium bracket
- Solid Colours
Acrovyn (27) | Acrovyn PVC-Free (15) - Finishes
Woodgrains (6) | Metals (3) | Concretes (3)
Opções de montagem
- Acrovyn
HRB-20 – QUICK LOCK
HRB-20AL – ANTI-LIGATURE - Acrovyn PVC-Free
HRB-20N – QUICK LOCK
HRB-20ALN – ANTI-LIGATURE
QUICK LOCK
ANTI-LIGATURE
CS’ sturdy and efficient fixing system makes the installation of Acrovyn Hand/Crash Rails a simple, clean process.
How does it work?
The unique cam lock on the bracket simply slots into the back of the retainer, and the profile is locked or unlocked with the twist of a spanner. This allows faster installation, but also enables fast removal for maintenance, without compromising the integrity of the wall fixings.
Vantagens:
- No more drilling holes in the retainer
- No more struggling with component alignment
- Ease of bracket location and attachment
- Allows for pre-assembly of retainer, cover and end caps off-site
- Allows for easy maintenance
- Offers long term savings
Colours & Finishes
- Solid Colours
Acrovyn (27) | Acrovyn PVC-Free (15) - Finishes
Woodgrains (6) | Metals (3) | Concretes (3)
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Woodgrains
Metallics
Concretes
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Stock Lengths & Fixings
- Acrovyn: 4.0m
Acrovyn PVC-Free: 3.0m - Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended
Acessórios
- End caps with Quick Lock feature

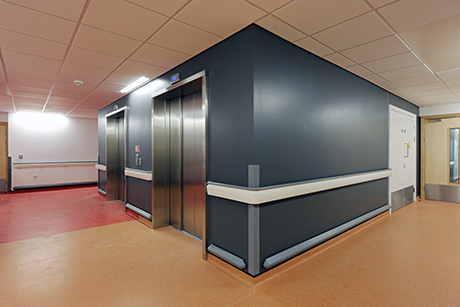

- External corners
- Quick Lock brackets (standard)
- Anti-ligature brackets (optional)
- Vertical accent trims (optional) – Black
- Removable kit for service ducts
